Android 빌드하기

Target Board을  이솝 커뮤니티의 S5PC100 보드를 사용하므로, 이솝 프로젝트 사이트 내용을 참고합니다.

http://www.aesop.or.kr/?mid=issuetracker&vid=AESOPC100



1.       Install GCC Tool chain

-          Download : http://www.aesop.or.kr/?mid=issuetracker&act=dispIssuetrackerDownload&vid=AESOPC100

GCC : arm-s5pc1xx-linux-gnueabi-4.3.2.tar.gz

GCC 4.3.2 을 사용하며, GCC 관련 자료는 http://gcc.gnu.org 확인 하시기 바랍니다.



-          압축해제

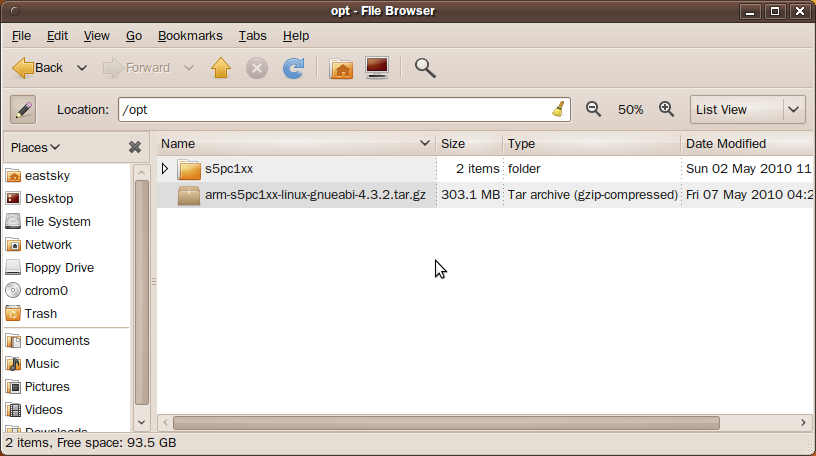

이솝 보드용 Tool chain은 호스트 시스템의 /opt 디렉터리에 설치를 합니다.

/opt 폴더를 복사하고, 다음의 명령으로 압축을 해제하시면 됩니다.



sudo tar xzf arm-s5pc1xx-linux-gnueabi-4.3.2.tar.gz







-          환경설정

Tool chain 의 Path 을 설정해주는 것이며, 다음과 같이 합니다.



sudo gedit /etc/profile

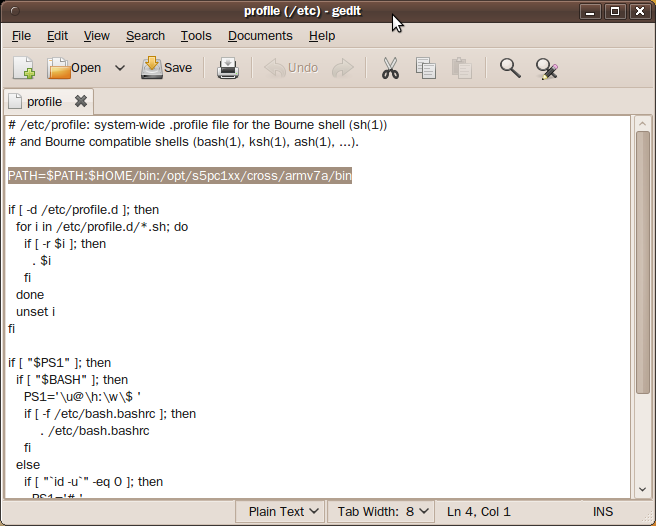

아래와 같이 창이 열리면, 선택된 부분과 같이 아래 Path 을 추가해 줍니다.

PATH=$PATH:$HOME/bin:/opt/s5pc1xx/cross/armv7a/bin





source /etc/profile

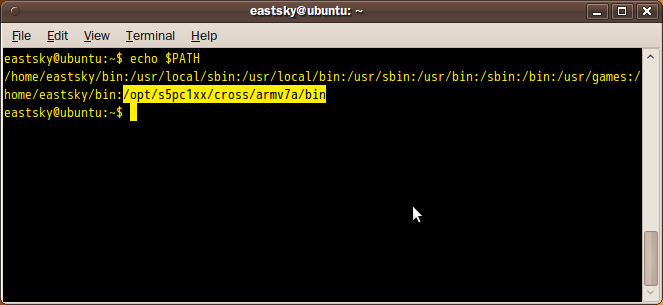

PATH 설정 확인

echo $PATH

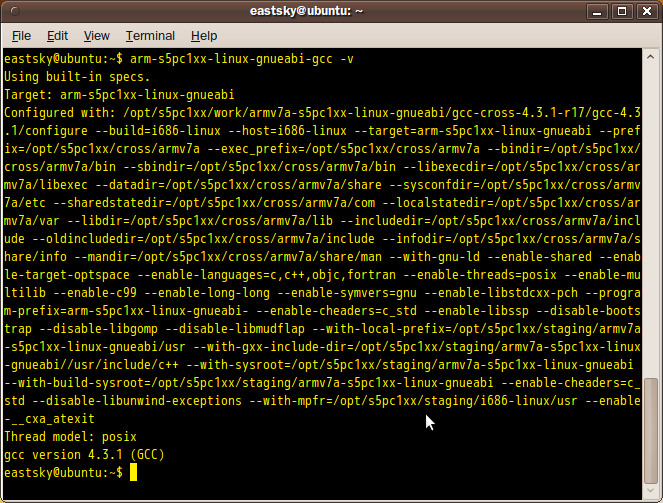

arm-s5pc1xx-linux-gnueabi-gcc –v





2.       Install & Build U-Boot

-          Download : http://www.aesop.or.kr/?mid=issuetracker&act=dispIssuetrackerDownload&vid=AESOPC100

U-Boot 1.3.4 : u-boot-1.3.4-aesop.100428.tar.gz



-          압축해제

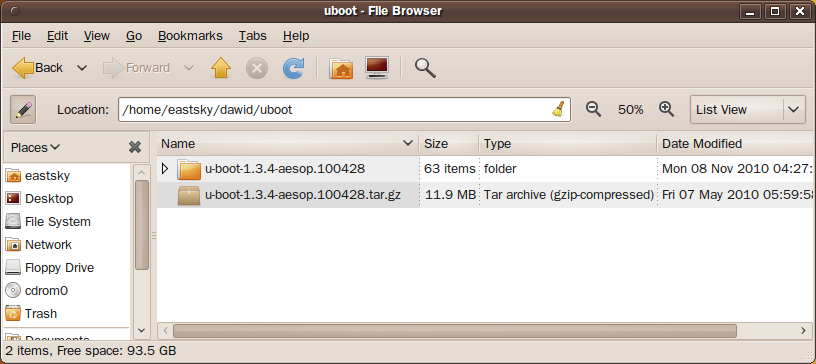

본인이 사용할 적절한 위치에 압축을 풀어 주시면 됩니다.

tar 명령어로 하셔도 되고, 그냥 파일 브라우저에서 압축해제 툴로 바로 실행하셔도 풀어도 됩니다.





-          U-Boot Build

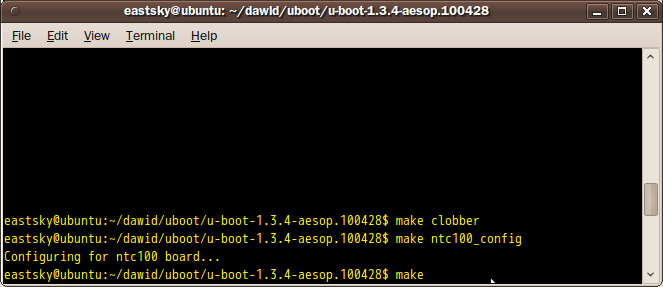

다음과 같이 명령어를 수행합니다.

make clobber               <- 기존에 만들어 것들을 제거

make ntc100_config    <- 이솝보드용 config 설정

make

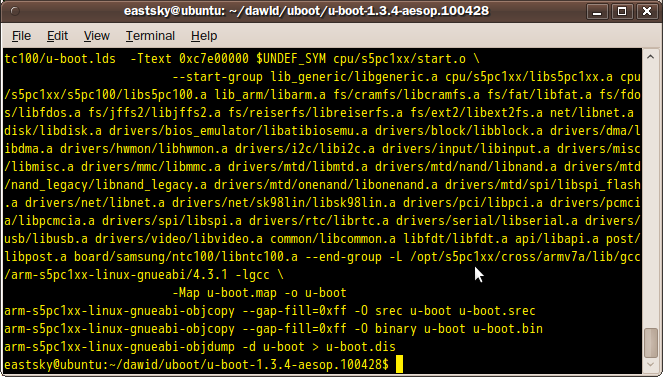

빌드 완료가 되면 아래 화면에서 처럼 u-boot.bin 을 사용하면 됩니다.





3.       Install & Build Android Linux Kernel

-          Download : http://www.aesop.or.kr/?mid=issuetracker&act=dispIssuetrackerDownload&vid=AESOPC100

Linux Kernel 2.6.29 : android-2.6.29-aesop-RTM10.tar.gz

해당 Kernel은 Android 및 X-Windows 모두 지원을 합니다.



-          Kernel Build

tar xzf android-2.6.29-aesop-RTM10.tar.gz

cd android-2.6.29-aesop-RTM10

make ntc100_xwindows_defconfig   <- X-Winodws 용 커널 빌드 시

make ntc100_android_defconfig      <- Android 용 커널 빌드 시

make zImage

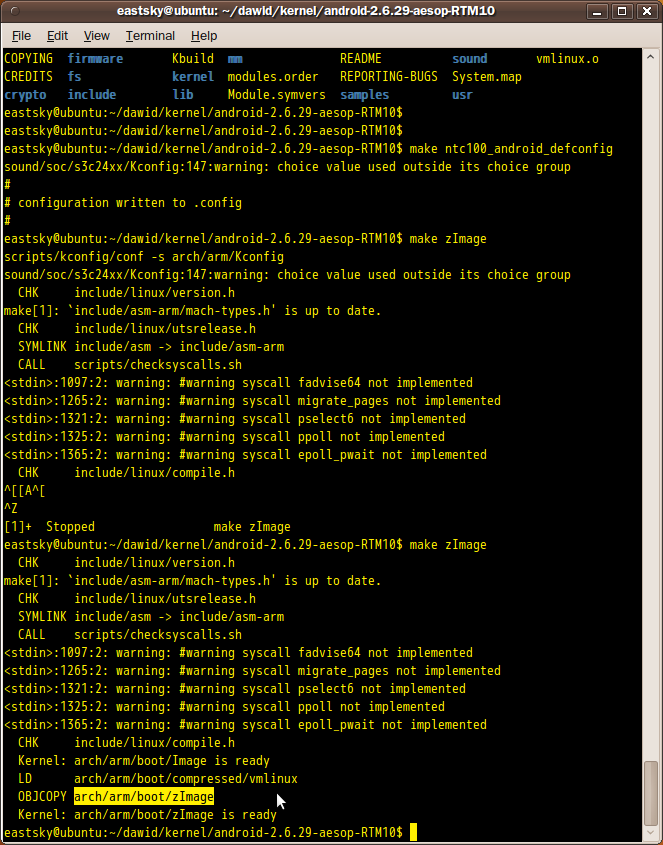

아래와 같이 빌드가 완료되었으며, arch/arm/boot/zImage 가 생성이 되었습니다.



4.       Build Android

-          Download 는 “Android 개발환경 구축” 게시물을 참조하시기 바라며,

추가로 이솝 보드용 소스는 아래와 같습니다.

Android Eclair : http://www.aesop.or.kr/?mid=issuetracker&act=dispIssuetrackerDownload&vid=AESOPC100



-          Build

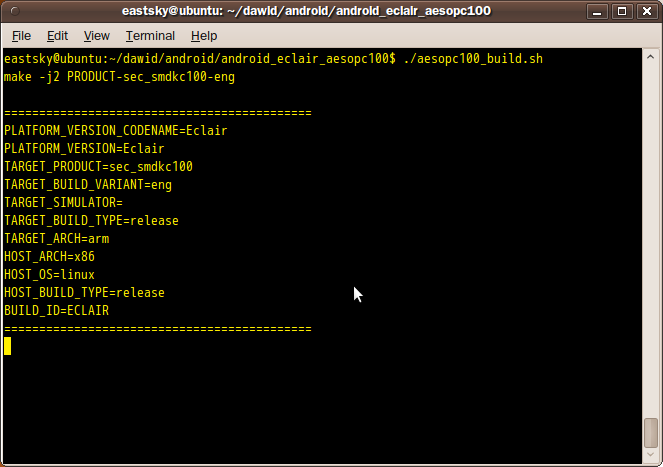

Android source 가 있는 위치에서 아래와 같이 aesopc100_build.sh 을 실행하면 됩니다.



eastsky@ubuntu:~/dawid/android/android_eclair_aesopc100$ ./aesopc100_build.sh

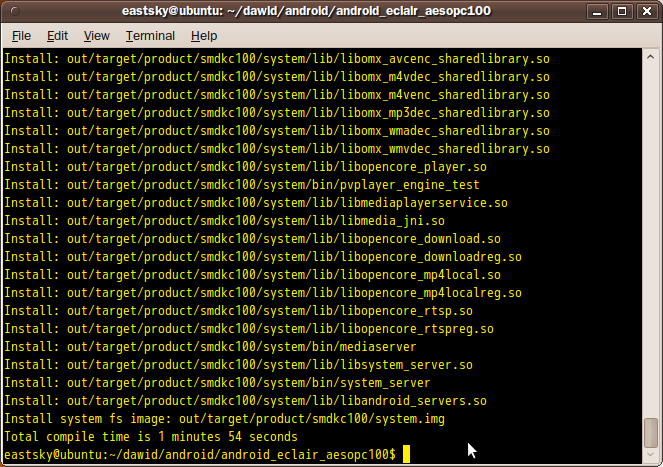

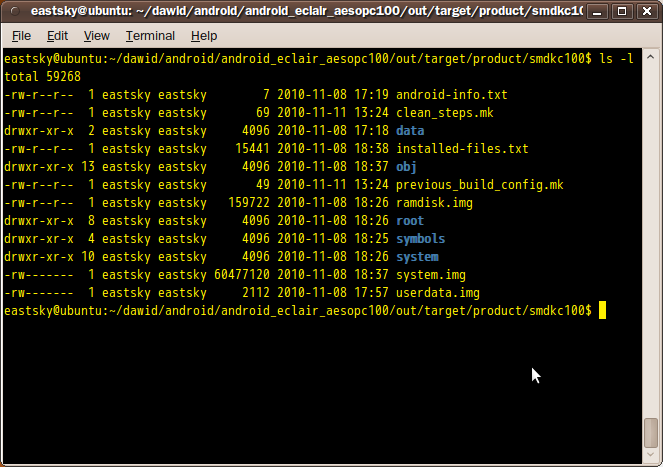

빌드가 완료되면 아래와 같이 system.img 파일이 생성이 됩니다.

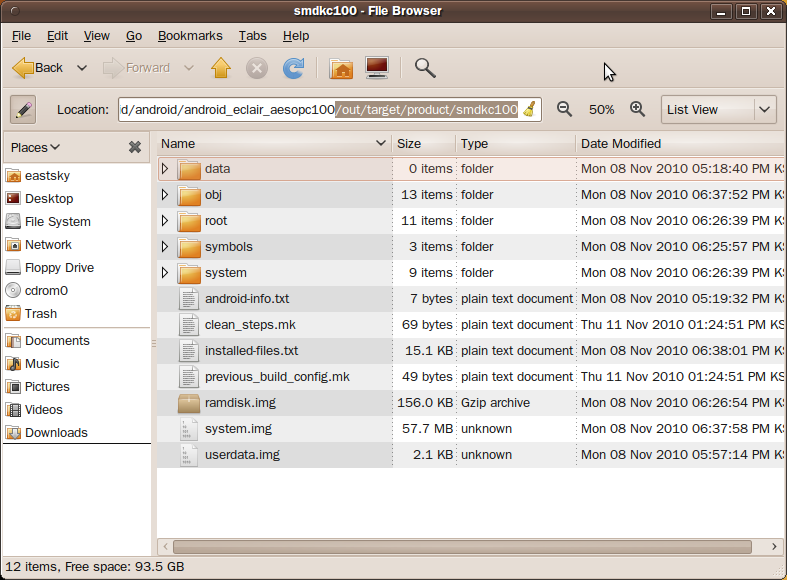

.. /android_eclair_aesopc100/out/target/product/smdkc100 아래 img 파일이 생성이 됩니다.





5.       Make NFS – Android 용 Root Fils System

-          NFS 용 디렉토리 생성 및 FS 파일을 복사 (본인에 맞게 적절한 곳을 지정하여 만들면 됩니다).

일단 /out/target/product/smdkc100 의 Output 파일들이 있는 곳으로 이동을 합니다.



cd /home/eastsky/dawid/android/android_eclair_aesopc100/out/target/product/smdkc100





 root 에서 편하게 사용하기 위해 root 계정으로 전환하고 아래와 같은 경로로 생성합니다.



mkdir /root/work/rootfs/test



그리고 아래와 같이 파일들을 복사합니다.

cp -a root/*  /root/work/rootfs/test

cp -a data   /root/work/rootfs/test/data/

cp -a system  /root/work/rootfs/test/system/



NFS 용으로 사용할 디렉토리 /root/work/rootfs/test 로 이동 합니다.

그리고 권한을 아래와 같이 변경하여 줍니다.



chown -R root.root *

chmod -R 777 data system





6.       Android New Vender & Product  (출처 이솝의 고도리님 : http://www.aesop.or.kr/?document_srl=265476#7)

이솝 보드용 Android 소스를 그대로 사용하면 굳히 따로 아래와 같이 Vendor 을 따로 안 만들고 하셔도 됩니다.



l  일단 android를 다운로드 받은 디렉토리로 움직인 후에 aesop이란 vendor를 하나 만듭니다.

기존에 있는 sample을 이용해서 하나 만들도록 하겠습니다.



cd vendor

cp -a sample aesop

cd aesop



Android.mk와

products 만 빼고 전부 삭제



================================================

rm -rf apps/ frameworks/ sdk_addon/ skins/

================================================



l   products를 새롭게 정의



1>

                  cd products

                  vi AndroidProducts.mk



                  ===========================================

                  PRODUCT_MAKEFILES := \

                    $(LOCAL_DIR)/sample_addon.mk



                  ==> 이렇게 된 것을 새로운 보드 이름으로 대체



                  PRODUCT_MAKEFILES := \

                    $(LOCAL_DIR)/ntc100.mk

                  ===========================================



                  그리고 기존의 복잡한 sample관련 mk 파일을 지웁니다.

                  rm sample_addon.mk



2>

ntc100.mk를 다음과 같이 edit

                  vi ntc100.mk



                  =============================================

                  $(call inherit-product, build/target/product/generic.mk)



                  PRODUCT_MANUFACTURER := aesop

                  PRODUCT_NAME := ntc100

                  PRODUCT_DEVICE := ntc100

                  PRODUCT_BOARD := ntc100

                  =============================================



l   새롭게 추가된 board에 대한 directory 구성

- 기존의 generic board의 것을 이용한다. generic board 디렉토리를 ntc100 디렉토리로 복사

                  cd ..

                  cp -a ../../build/target/board/generic/ ./ntc100     <- Vender 만 새로 만든 것입니다.



- 이 부분은 적용하지 않아도 된다. board에 따라 틀림(kernel에 따라)

                  이 부분은 product의 kernel 내에서의 keypad driver에 따라 keylayout을 지정하는 부분인데,

이 부분은 건너뛰어도 됩니다.



                  그냥 이게 없으면 qwerty.kl 이 로딩되거든요.

                 ================================================================

                  vi AndroidBoard.mk

                  tuttle2를 nt-keypad로 수정(여기서 nt-keypad는 key device driver의 이름이다)



                  mv tuttle2.kcm nt-keypad.kcm

                  mv tuttle2.kl nt-keypad.kl

                 =================================================================



                  vi BoardConfig.mk 해서 USE_CAMERA_STUB:=true 를 추가한다.

                  - 이유는

                 =================================================================

                  //주의사항

                  frameworks/base/camera/libcameraservice/Android.mk를 보면



                  #

                  # Set USE_CAMERA_STUB for non-emulator and non-simulator builds, if you want

                  # the camera service to use the fake camera.  For emulator or simulator builds,

                  # we always use the fake camera.



                  ifeq ($(USE_CAMERA_STUB),)

                   USE_CAMERA_STUB:=false

                   ifneq ($(filter sooner generic sim,$(TARGET_DEVICE)),)

                    USE_CAMERA_STUB:=true

                   endif #libcamerastub

                  endif



                  이 경우

                  USE_CAMERA_STUB:=true 를 BoardConfig.mk 에 넣어줘야 한다.

                 =================================================================



l   build script 만들기

android top으로 가서 vi ntc100.sh 해서

=======================================================================

#!/bin/sh



CPU_JOB_NUM=$(grep processor /proc/cpuinfo | awk '{field=$NF};END{print field+1}')



START_TIME=`date +%s`

echo make -j$CPU_JOB_NUM PRODUCT-ntc100-eng

echo

make -j$CPU_JOB_NUM PRODUCT-ntc100-eng

if [ $? != 0 ] ; then

                                    exit $?

fi



END_TIME=`date +%s`



echo "Total compile time is $((($END_TIME-$START_TIME)/60)) minutes $((($END_TIME-$START_TIME)%60)) seconds"

========================================================================



저장하고 나온 후에

(

                  이 명령은 samsung의 C100 code를 보면 build script가 있는데 그것을 베낀 것입니다.

                  실제로는 host의 cpu갯수를 읽은 후에



                  make PRODUCT-ntc100-eng



                  -j 옵션을 이용해서 실행하는 것입니다.

)

                 생성된 script에 실행 permission을 줍니다.



chmod 755 ntc100.sh
